More bolts. Better security. Higher price.
That’s the familiar argument for a multipoint door lock. And it’s incomplete.
A properly engineered multipoint locking system can restrain a door at several positions, reduce localized movement along the opening edge, and help maintain more consistent pressure against weatherstripping, but those advantages depend on something manufacturers rarely put on the front of the packaging: the door and frame must actually support the mechanism.
What happens when they don’t?
You get more components, more alignment problems, and potentially higher repair bills.
The bottom line: Multipoint locks generally offer better distributed door-edge restraint and greater potential for weather sealing, while single-point locks offer simpler installation, lower initial cost, and easier servicing. Neither design guarantees superior security without proper installation and verified performance.
I would choose a multipoint system for a tall, weather-exposed entrance door when the complete assembly has been properly engineered. For an ordinary, structurally sound door with a limited budget, I would seriously consider a high-quality single-point deadbolt.
The distinction isn’t about which lock looks more impressive.
It’s about what the door actually needs.
A single-point door lock secures the door at one primary location, usually through a deadbolt or mortise locking mechanism near handle height.

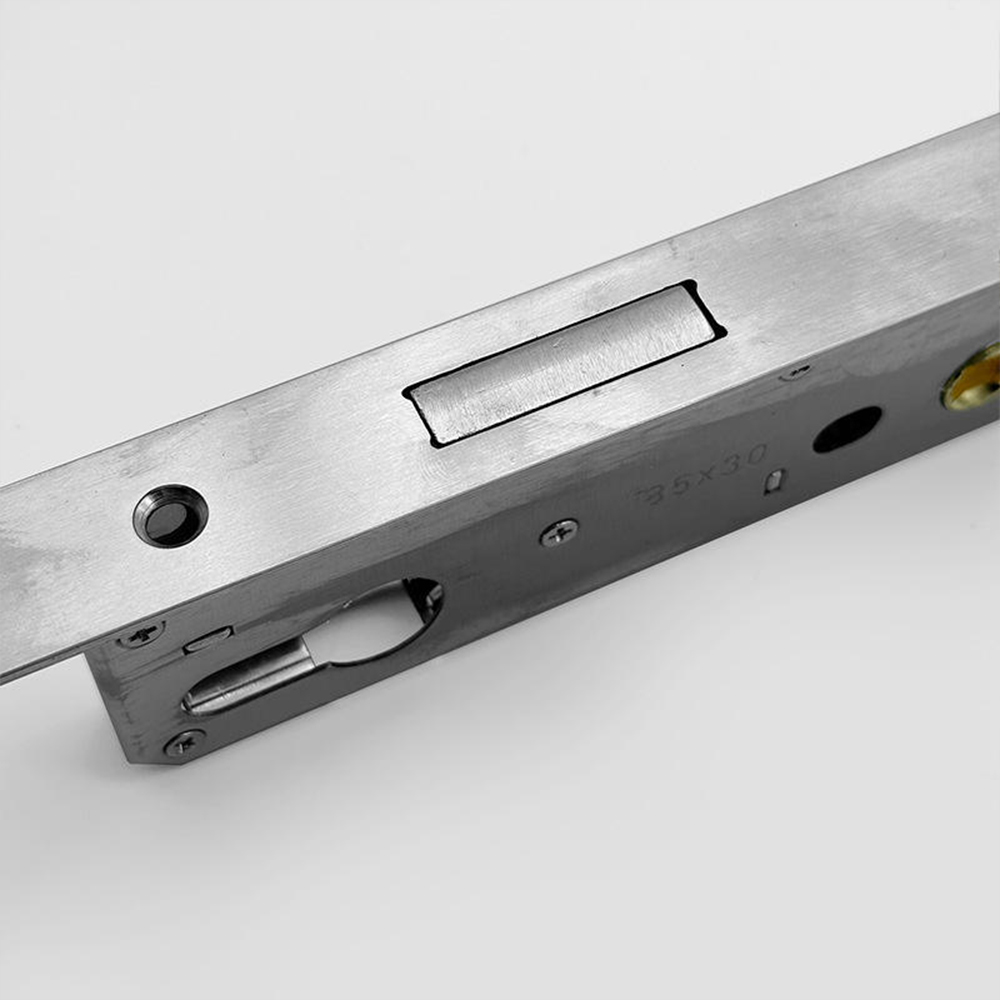

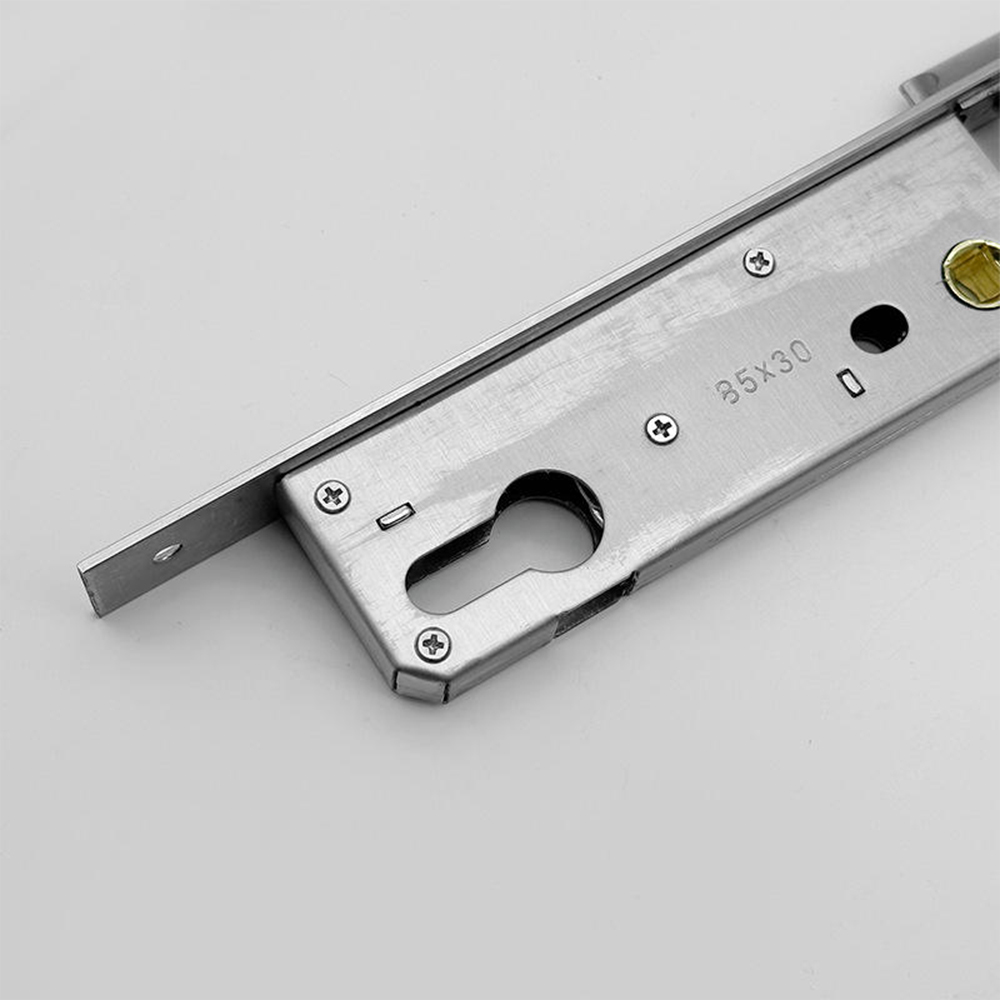

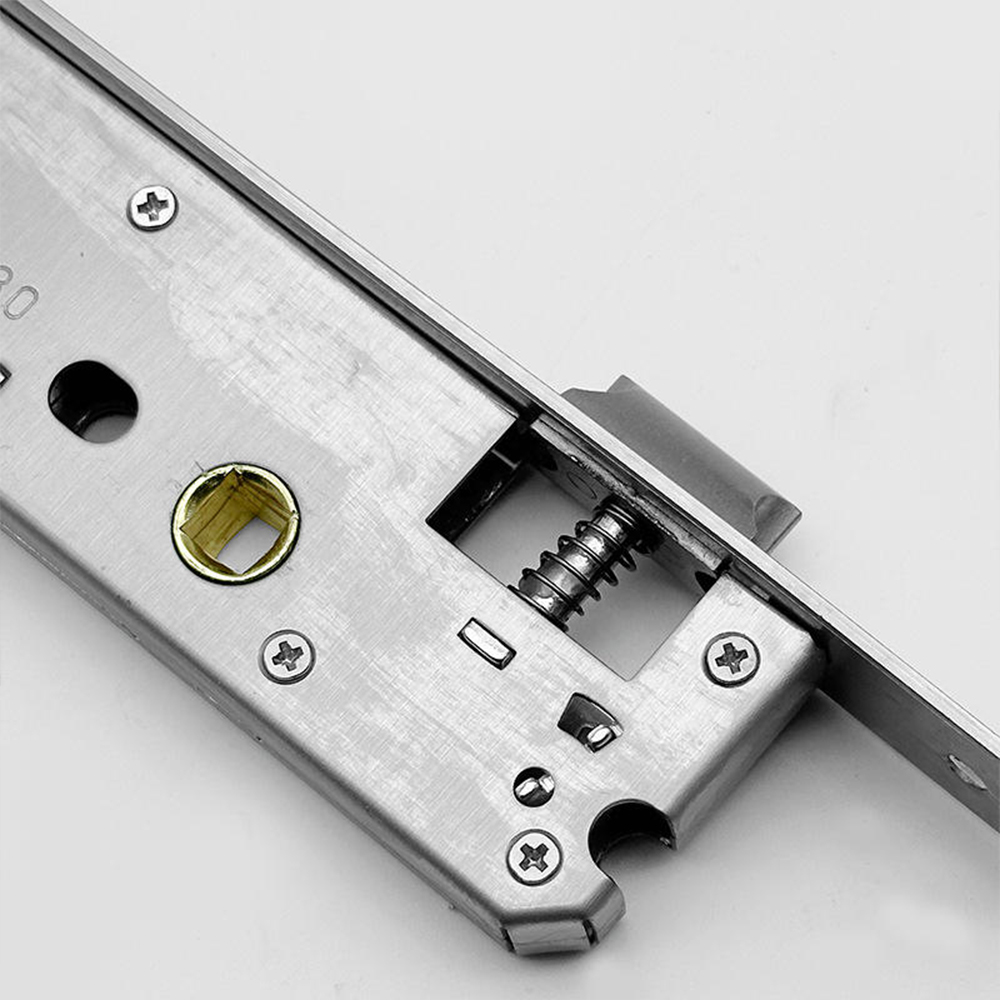

A multipoint door lock connects several locking positions to a central operating mechanism. Hooks, straight bolts, rollers, or shootbolts engage corresponding frame-mounted keepers when the lock operates.
In a typical 3 point door locking system, engagement occurs near the top, middle, and bottom of the door.
One mechanism. Several connections.
The arrangement can distribute restraint along the door edge, although not every engagement component performs the same function. Hooks are commonly used for positive mechanical retention; adjustable rollers may contribute more directly to gasket compression.
For a closer look at the gearbox and its connected components, CHIER explains how multipoint door locks work.
| Evaluation Factor | Multipoint Door Lock | Single-Point Lock |
|---|---|---|
| Locking locations | Multiple frame engagement positions | One principal locking position |
| Resistance to door-edge prying | Can distribute restraint across several positions | Relies more heavily on localized lock and strike reinforcement |
| Cylinder security | Depends on cylinder specification | Depends on cylinder or deadbolt specification |
| Weatherseal compression | Can improve compression consistency along the door edge | Less direct control away from the central lock |
| Installation | Requires accurate keeper positioning and alignment | Generally simpler |
| Maintenance | More linked components and adjustment points | Fewer mechanical components |
| Replacement compatibility | Often model- and manufacturer-specific | Common lock types generally easier to replace |
| Initial cost | Usually higher | Usually lower |
| Best application | Tall, exposed, or engineered entrance systems | Standard doors prioritizing simplicity and cost |
The table highlights an important distinction: mechanical complexity can create benefits, but complexity also creates obligations.
A three-point lock that binds during normal operation is not an engineering upgrade.
It’s a service problem.
Consider an attempted forced entry involving pressure applied near the upper section of a door.
With a single-point deadbolt, the primary locking connection remains near the center. The remaining resistance comes from door stiffness, hinge support, frame strength, and how the assembly distributes the applied force.
A multipoint system can introduce additional frame connections above and below that central position.
That may reduce localized separation between the door leaf and frame, especially where hook bolts engage properly reinforced keepers.
But there’s a catch.
Three locking points do not equal three times the security.
A weak cylinder can compromise an otherwise substantial mechanism. Poorly anchored keepers can defeat the advantage of multiple bolts. And a flexible door frame can undermine the performance of either system.
I would never specify a lock based solely on the number of locking points.
The ANSI/BHMA A156.37-2025 standard for multipoint locks, published on December 2, 2025, establishes requirements covering operation, strength, cycling, and security testing.
That is more useful than a manufacturer’s unsupported claim that a locking strip is heavy-duty.
The standard also recognizes that laboratory performance and real-world operation can differ because of installation conditions, door construction, maintenance, and environmental exposure.
This is the issue I would challenge during procurement.
If a supplier claims its multipoint lock is more secure, what independent test evidence supports the specific product and configuration?
Not the general product family.
Not a visually similar model.
The exact mechanism being supplied.
Florida provides an instructive example of how security-related hardware approvals should be interpreted.
On September 11, 2025, the Florida Building Code product approval system approved the Securitech Trident TEL-100/200 multipoint lock, under approval FL14075-R5.
The official Florida product approval record identifies the approved component as impact resistant, suitable for use in the High-Velocity Hurricane Zone, and associated with a design-pressure rating of +100/-100 psf within its stated approval conditions.
Those are specific, verifiable performance claims.
They are not evidence that every three-point lock has equivalent capabilities.
The approval applies to a defined product and its approved installation conditions. It should not be generalized to other multipoint mechanisms or interpreted as an unrestricted water-infiltration certification.
My takeaway is simple: credible hardware specifications identify the test method, approved model, and installation limits.
Marketing adjectives don’t.
Another practical example comes from Hampshire and Isle of Wight Constabulary.
Following reported burglaries in Hart and Rushmoor, the police issued a November 2024 burglary-prevention notice.
Among its recommendations was a specific reminder for residents using uPVC multipoint doors: lift the handle and lock the door with the key.
The notice did not establish that multipoint-lock misuse caused those burglaries.
Nevertheless, it illustrates an important operational distinction.
On some lift-to-lock mechanisms, closing the door only engages the latch. The additional locking points must be activated separately.
Other multipoint designs lock automatically.
The installation instructions matter, and users need to understand the mechanism they actually have.
A sophisticated lock that is never properly engaged cannot deliver its intended protection.
Security tends to dominate the sales conversation.
Weather sealing deserves equal attention.
When a door closes, the weatherstripping must make sufficient contact with the surrounding frame to control unwanted air movement.
On some doors, a single central locking point provides adequate restraint.
On others, particularly taller panels exposed to wind or dimensional movement, the upper and lower corners may not maintain the same gasket contact.
A multipoint system can help by restraining the door at several positions.
Imagine a tall exterior door using an EPDM perimeter seal.
If the door leaf bows slightly away from the frame, the central deadbolt may remain fully engaged while the upper section develops a small gap.
The lock is functioning.
The seal isn’t.
A correctly designed multipoint locking system can reduce this problem by engaging the frame at additional positions. Adjustable cams or other pull-in features may help maintain the intended gasket compression.
However, these mechanisms have limits.
A multipoint lock cannot repair a warped frame, compensate for badly positioned hinges, or restore a hardened weatherseal.
Excessive compression can also increase operating force and gearbox loading.
This is why the best multipoint lock weather sealing results come from coordinated door, frame, gasket, and hardware design.
Not from the lock alone.
The U.S. Department of Energy’s exterior-door weatherstripping guidance, published July 1, 2024, identifies door adjustment and smooth operation as parts of effective weatherstripping installation.
Its broader air-sealing guidance states that weatherstripping and caulking can reduce unwanted air movement and often deliver relatively quick returns on investment.
That evidence supports the importance of controlling leakage.
It does not establish that installing a multipoint lock alone will reduce energy bills by any particular percentage.
I would ask manufacturers to demonstrate actual air-leakage and water-penetration performance on the complete doorset.
A credible sealing claim needs measured results, not a photograph of three extended bolts.
For aluminum, uPVC, and timber applications, gasket behavior must also be considered alongside material-specific geometry. CHIER’s guide to multipoint lock compatibility across different door materials explains why the same locking mechanism cannot automatically be transferred between door systems.
Single-point locks usually cost less to purchase and fit.
They generally require less complex door preparation and fewer coordinated frame components.
Multipoint systems introduce additional hardware, including a central gearbox, extended faceplate, connecting mechanisms, locking points, and multiple keepers.
Installation takes more care.
Replacement can also be more involved.
Checkatrade’s October 2026 UK uPVC door lock replacement cost guide provides these estimated supply-and-fit prices:
| Repair or Replacement | Estimated Cost | Average |
|---|---|---|
| Standard euro cylinder replacement | £100–£150 | £125 |
| Anti-snap euro cylinder replacement | £125–£175 | £150 |
| Multipoint gearbox replacement | £120–£220 | £170 |
| Complete multipoint locking strip replacement | £160–£350 | £255 |
These figures are UK service-market estimates, not factory quotations or a direct comparison between complete single-point and multipoint lock installations.
A euro cylinder can also be part of a multipoint system.
That distinction matters when comparing costs.
What the figures demonstrate is the financial difference between replacing an individual component and replacing a full mechanism.
For a door manufacturer, I would evaluate cost in four stages.
First, the hardware purchase: gearbox, locking strip, keepers, cylinder, handles, and accessories.
Second, the installation: machining, fixing, fitting, and adjustment.
Third, quality control: checking full engagement, operating force, and door alignment.
Fourth, serviceability: spare gearboxes, compatible replacements, repair labor, and warranty exposure.
A multipoint lock with poor component availability can become expensive even when the original purchase price looks competitive.
And replacing a failed gearbox without correcting the door alignment that damaged it may lead to another repair.
CHIER’s technical article on gearbox-only replacement versus complete multipoint lock strip replacement addresses precisely this distinction.
The lesson for procurement teams is clear.
Compare total installed and serviced cost, not merely the unit price on a supplier quotation.
There is no universal winner.
I would choose based on the actual engineering requirements, not the manufacturer’s preferred sales story.
A multipoint locking system becomes attractive when the door is tall, exposed, or specifically designed to benefit from distributed edge restraint.
It is also worth considering when consistent gasket compression is an important design objective or when a tested complete doorset requires a particular multipoint arrangement.
The condition is that compatibility and performance must be verified.
For buyers reviewing available mechanisms, CHIER’s multipoint door lock product range provides a starting point for comparing locking configurations.
I would lean toward a single-point lock when the door is conventional, structurally stable, and does not require additional edge restraint to meet its performance requirements.
Straightforward installation and widespread repair support are meaningful advantages.
A high-quality deadbolt installed in a reinforced door and frame can be a better investment than an unverified multipoint mechanism fitted into an incompatible profile.
